Horizon EZ7 14' Dump Trailer 7K
| Stock # | 08238 |
| Año | 2025 |
| Marca | Horizon Trailers |
| Numero de Modelo | EZ7 14' x 83" |
| Color | Cloud Gray/Navy Blue |
| Longitud del piso | 14' |
| Ancho | 83" |
| Altura lateral | 26" |
| GVWR | 14,000 lbs |
| Axle Capacity | 7,000 lbs |
| Ubicación | Springdale, AR |
Código de barras:
3H7BD1421SR008238
Referencia interna:
08238
Standard Trailer Specs
DIMENSIONS - BUMPER PULL
LENGTH: 14'
SIDE HEIGHT: 26" WITH BOARD KIT
BED WIDTH: 83"
BED HEIGHT: 28"
WEIGHT RATINGS
GAWR: 7,000 lbs
GVWR: 14,000 lbs
ESTIMATE DRY WEIGHT: 4,050lbs
ESTIMATE PAYLOAD: 9,950 lbs
ESTIMATE TONGUE WEIGHT: 900 lbs - 1,000 lbs
CARGO CAPACITY: 9,950 lbs
FINISH
PAINT TYPE: Powdercoat
PREP: Steel Grit Blasted
WARRANTY
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty
COUPLER
STANDARD COUPLER BP: Adjustable Demco EZ Latch 2-5/16" Bp Coupler (21,000 lbs)
FRONT JACK BP: 1 Side Wind Drop Jack Leg (12,000 lbs)
TOOLBOX
TOOLBOX BP: Mega Lockable Toolbox Bp (Houses Battery and Pump)
SAFETY SYSTEM
BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit
SAFETY CHAINS: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
CHASSIS/FRAME
MAIN FRAME: 8" I-Beam (13 lbs/ft)
DUMP/BED
BED WIDTH: 83"
BED HEIGHT: 36"
FLOORING: 9ga. Floor
FRAME: 5" x 5" x 5/16" Angle Iron (10.3 lbs/ft)
CROSSMEMBERS: 3" Channel (3.50 lbs/ft) 16" Spacing
D-RINGS: 4 D Rings Welded Inside Box
DUMP ANGLE: 45° - 49°

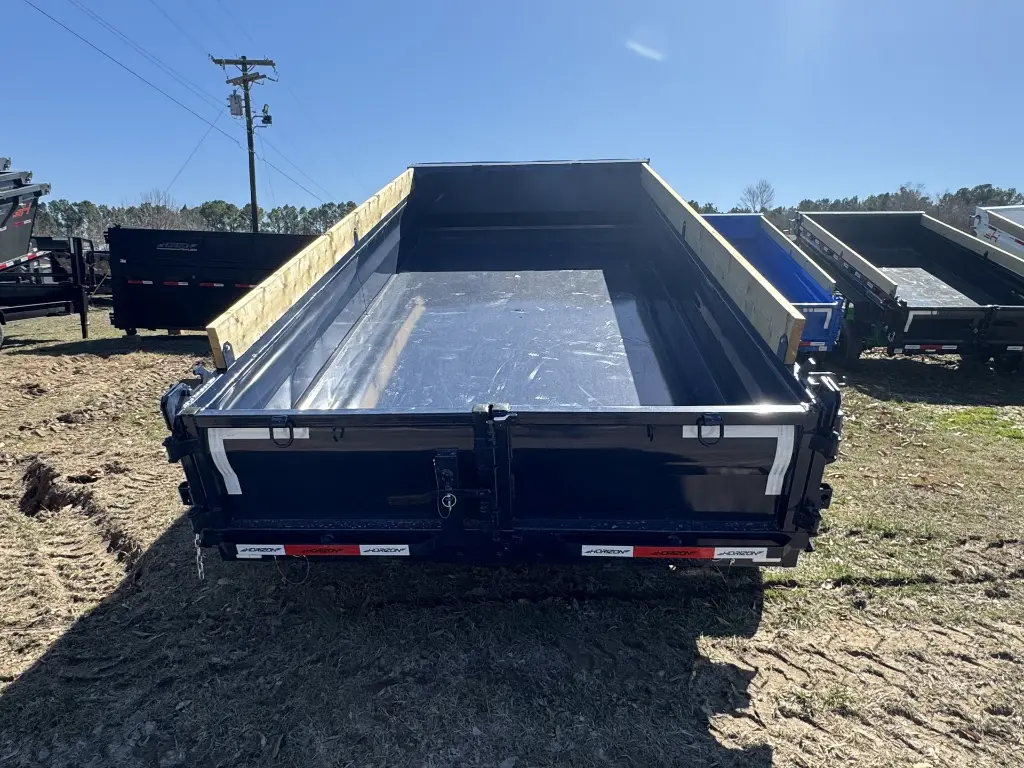

REAR
GATE: 2 Way Door
SIDES
HEIGHT: 26"
THICKNESS: 10ga.
TYPE: Rounded Steel
TOP RAIL: 3" x 5" x 11ga. Tubing
STAKE POCKETS: 1,5/8" x 3,5/8" (ID) Stake Pockets
HOOKS: 3/8" Round "L" Hooks
FENDERS: 14ga. Diamond Plate Steel Fenders

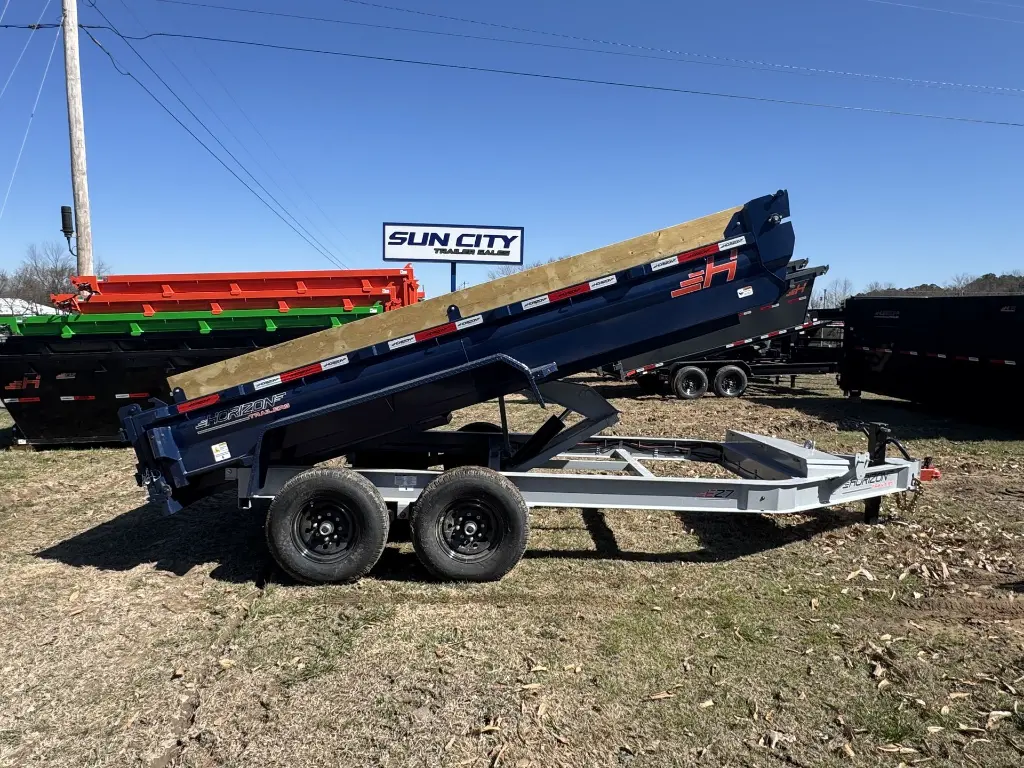

LIFT SYSTEM/HYDRAULICS
SYSTEM: Hydraulic - Power Up / Gravity Down
PUMP: KTI 12V Hydraulic Pump
CONTROLLER: 14' Control Cable
12', 14' DUMP LIFT
CYLINDER: 5" x 15" Single Push Cylinder
HOIST CAPACITY: 15,000 lbs
16' DUMP LIFT
CYLINDER: 5" x 21" Single Push Cylinder
HOIST CAPACITY: 15,000 lbs
RUNNING GEAR/TIRES
TYPE: Radial Tires
SIZE: ST235/85R16
PLY: 10
RATING: 3,083 lbs
RIMS: 16" Black Mod Wheels
SUSPENSION
AXLE TYPE: 2 - 7k Lippert Electric Brake EZ Lube Spring Axles
BOLT PATTERN: 8 On 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: Spring
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
ELECTRICAL AND LIGHTING/BATTERY AND CHARGING
BATTERY: 1 - Interstate 27 Deep Cycle Battery
CHARGING SYSTEM: 110V Integrated Trickle Charger
WIRING HARNESS: All-Weather Wiring Harness (7-Way RV)
FRAME WIRING: Double Insulated Wiring Harness
LIGHTING
LIGHTS: DOT Approved Tecniq LED Lights
SAFETY
REFLECTIVE TAPE: 3M Dot Compliant Reflective Tape
