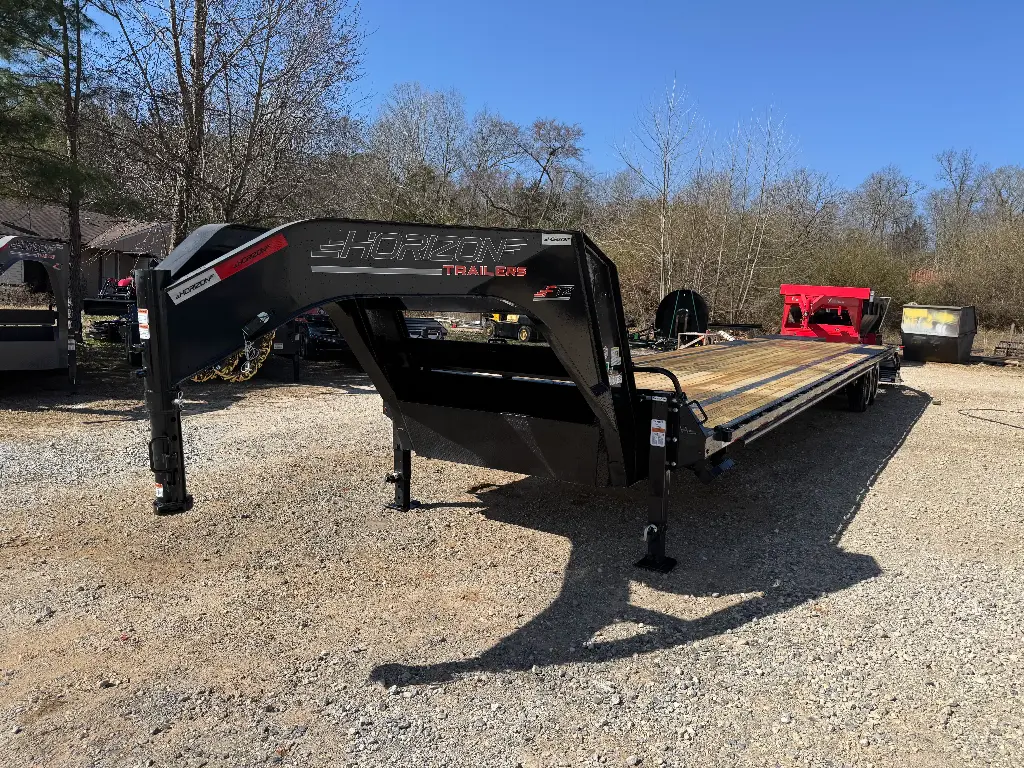

Horizon FTZ 40' Deck Over Gooseneck Trailer 10K (35'+5')
| Stock # | 09312 |
| Año | 2025 |
| Marca | Horizon Trailers |
| Numero de Modelo | FTZ 40' x 102" |
| Color | Black |
| Longitud del piso | 40' |
| Ancho | 102" |
| GVWR | 22,400 lbs |
| Unloaded Vehicle Weight | 6,970 lbs |
| Cargo Carrying Capacity | 15,430 lbs |
| Axle Capacity | 10,000 lbs |
| Ubicación | Springdale, AR |
Código de barras:
3H7GF4024SR009312
Referencia interna:
09312
Standard Trailer Specs
DIMENSIONS
GN LENGTH: 40'
DECK WIDTH: 102"
DECK HEIGHT: 33"
WEIGHT RATINGS
GAWR: 10,000 lbs
GVWR: 22,400lbs
ESTIMATE DRY WEIGHT: 6,970 lbs
ESTIMATE PAYLOAD: 15,430 lbs
ESTIMATE TONGUE WEIGHT: 1,300 lbs - 1,400 lbs
FINISH
PAINT TYPE: Powdercoat
PREP: Steel Grit Blasted
WARRANTY
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty
TONGUE
GN TYPE: Fabricated I-Beam
GN LENGTH: 96" (From Behind Riser)
GN HEIGHT: 70" (From Underneath Neck)
GN SPARE: Weld On Spare Tire Mount
COUPLER
STANDARD COUPLER GN: Adjustable 2-5/16" Gn Coupler (30,000 lbs)
JACKS
FRONT JACKS GN: 2 Side Wind Drop Jack Legs (12,000 lbs)
TOOLBOX
TOOLBOX GN: Lockable Toolbox Gn
SAFETY SYSTEM
BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit
SAFETY CHAINS: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
CHASSIS/FRAME
MAIN FRAME: 12" I-Beam (14 lbs/ft)
DECK/BED
DECK: 5' Flip Over Mountain Ramps
DECK WIDTH: 102"
DECK HEIGHT: 33"
FLOORING: Pine Lumber Floor
FRAME: 2" x 5" x 11ga. Tubing Bed Frame
CROSSMEMBERS: 3" Channel (3.50 lbs/ft) 16" Spacing
SIDES
STAKE POCKETS: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
SLIDE TRACK: Down Road Side
RUNNING GEAR/TIRES
TYPE: Radial Tires
SIZE: ST215/80 R17.5
PLY: 18 ply
RATING: 6,006 lbs
RIMS: 17.5" Black Mod Wheels
SUSPENSION
AXLE TYPE: 2 - 10k Lippert Electric Brake EZ Lube Spring Axles
BOLT PATTERN: 8 On 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: Spring
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
ELECTRICAL AND LIGHTING
BATTERY AND CHARGING
WIRING HARNESS: All-Weather Wiring Harness (7-Way RV)
FRAME WIRING: Double Insulated Wiring Harness
LIGHTING
LIGHTS: DOT Approved Tecniq LED Lights
SAFETY
REFLECTIVE TAPE: 3M Dot Compliant Reflective Tape
