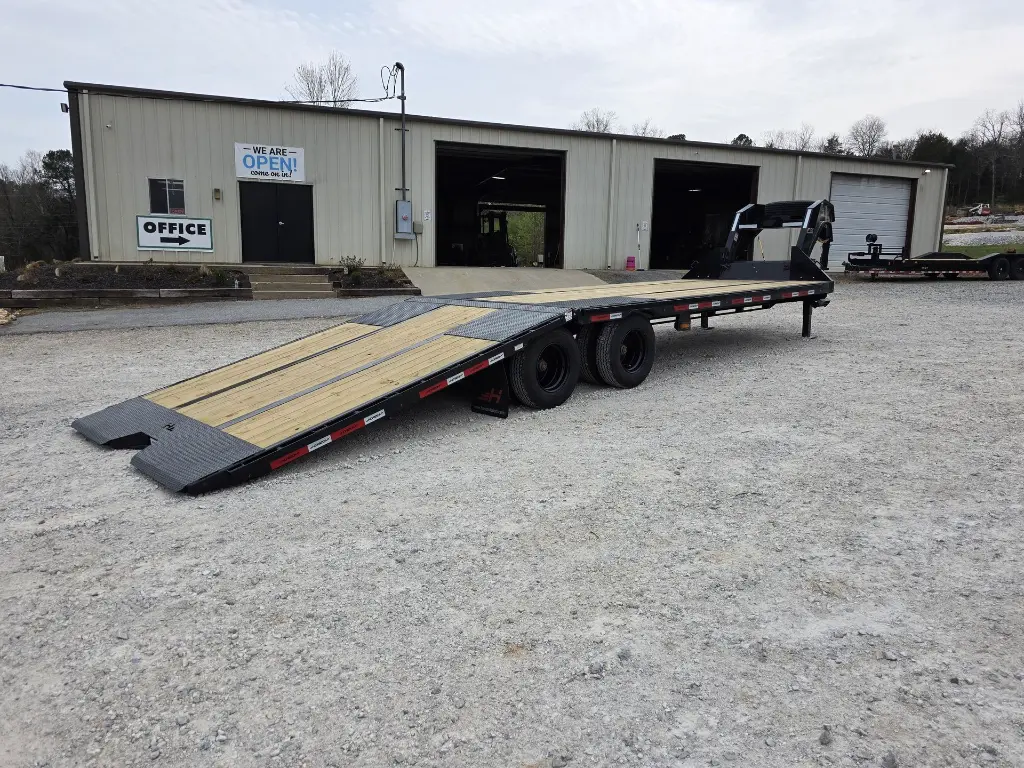

Horizon FYZ 30' Hydraulic Dovetail Gooseneck 12K (18'+12')
| Stock # | 09369 |
| Año | 2025 |
| Marca | Horizon Trailers |
| Numero de Modelo | FYZ 30' x 102" |
| Color | Black |
| Longitud del piso | 30' |
| Ancho | 102" |
| GVWR | 25,900 lbs |
| Unloaded Vehicle Weight | 10,000 lbs |
| Cargo Carrying Capacity | 15,900 lbs |
| Axle Capacity | 12,000 lbs |
| Ubicación | Springdale, AR |
Código de barras:
3H7GF3028SR009369
Referencia interna:
09369
Standard Trailer Specs
DIMENSIONS
DECK HEIGHT: 30'
DECK WIDTH: 102"
WEIGHT RATING
GAWR - 12,000 LBS
GVWR - 25,900 LBS
FINISH
PAINT TYPE - POWDERCOAT
PREP - STEEL GRIT BLASTED
WARRANTY
AXLE WARRANTY: 6 YEAR LIPPERT SPRING AXLE WARRANTY
TRAILER WARRANTY: 3 YEAR FRAME / 1 YEAR PARTS WARRANTY
TONGUE
TONGUE TYPE: NECKBOSS 12" ENGINEERED I-BEAM
LENGTH: 98" LONG (FROM BEHIND RISER)
HEIGHT: 70" (FROM UNDERNEATH NECK)
SPARE: WELD ON SPARE TIRE MOUNT
STORAGE BEHIND NECK: STORAGE BOX / WINCH READY
COUPLER
STANDARD COUPLER: ADJUSTABLE 2-5/16" GN COUPLER (30,000 LBS]
JACKS
FRONT JACK: 2 SIDE WIND SPRING LOADED DROP JACK LEGS (12,000 LBS]
TOOLBOX
TOOLBOX: MEGA LOCKABLE TOOLBOX
SAFETY
SAFETY CHAINS: 3/8" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK [2 EACH)
CHASSIS/FRAME
MAIN FRAME: BRIDGED 12" I-BEAM (19 LBS/FT)
TORQUE TUBE30' AND UP ONLY: 4,1/2" TUBE
DOVETAIL FRAME: 10" ENGINEERED HIGH-TENSILE STEEL I-BEAM
SIDE
LEFT SIDE: LOCKABLE TOOLBOX (HOUSES BATTERIES AND PUMP)
BED
REAR OF DECK: 12' DOVETAIL
DECK FRAME: 2" X 6" X 7GA. TUBING BED FRAME
FLOORING: PINE LUMBER FLOOR
CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT] 16" SPACING
DECK HEIGHT: 34”
DECK WIDTH: 102”
DOVETAIL
DECK FRAME: 2" X 6" X 7GA. TUBING BED FRAME
FLOORING: PINE LUMBER FLOOR
CROSSMEMBERS: 3" I-BEAM
DECK HEIGHT: 34"
DECK WIDTH: 102"
DOVETAIL LENGTH: 12'
HAULING CAPACITY: 10,000 LBS WHEN WEIGHT DISTRIBUTED ACROSS LENGTH OF DECK
TILT: 13° (TILT]
SIDES
RUB RAIL: 2" X 3/8" RUB RAIL
STAKE POCKETS: 1,5/8" X 3,5/8" (ID] STAKE POCKETS (SPACED AT 24"]
SPOOLS: 2" X 10GA. PIPE SPOOLS (SPACED AT 24")
SIDES: SLIDE IN SIDE STEP ON BOTH SIDES
LIFT SYSTEM/HYDRAULICS
SYSTEM: 2 BUTTON HYDRAULIC - POWER UP / POWER DOWN
PUMP: KTI 12V HYDRAULIC PUMP
CONTROLLER: 14' CONTROL CABLE
WIRELESS CONTROLLER: TUFF WIRELESS 2 BUTTON WIRELESS REMOTE
12' DOVETAIL
CYLINDERS: 2-4" X 16" SINGLE PUSH CYLINDERS
LIFT CAPACITY: 10,000 LBS WHEN WEIGHT DISTRIBUTED ACROSS LENGTH OF DECK
RUNNING GEAR/TIRES
TYPE: RADIAL TIRES
SIZE: ST235/80 R17.5, DUAL
PLY: 14
RATING: 3,080 LBS
RIMS: 17.5" BLACK MOD WHEELS
SUSPENSION
AXLE TYPE: 12K LIPPERT ELECTRIC BRAKE AUTO ADJUST DUAL OIL BATH SPRING AXLES
BOLT PATTERN: 8 ON 6.5'
AXLE COUNT: 2
SUSPENSION TYPE: SPRING
AXLE WARRANTY: 6 YEAR LIPPERT SPRING AXLE WARRANT
ELECTRICAL AND LIGHTING/BATTERY AND CHARGING
BATTERY: 2 - INTERSTATE 27 DEEP CYCLE BATTERIES
WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV)
FRAME WIRING: DOUBLE INSULATED WIRING HARNESS
LIGHTING
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
SAFETY
REFLECTIVE TAPE: 3M DOT COMPLIANT REFLECTIVE TAPE
ADDED OPTIONS:
12K HYDRAULIC JACKS
4" TORQUE TUBE 30' - 36'
7.5-WATT SOLAR PANEL,
14 PLY TIRES
SPARE TIRE
