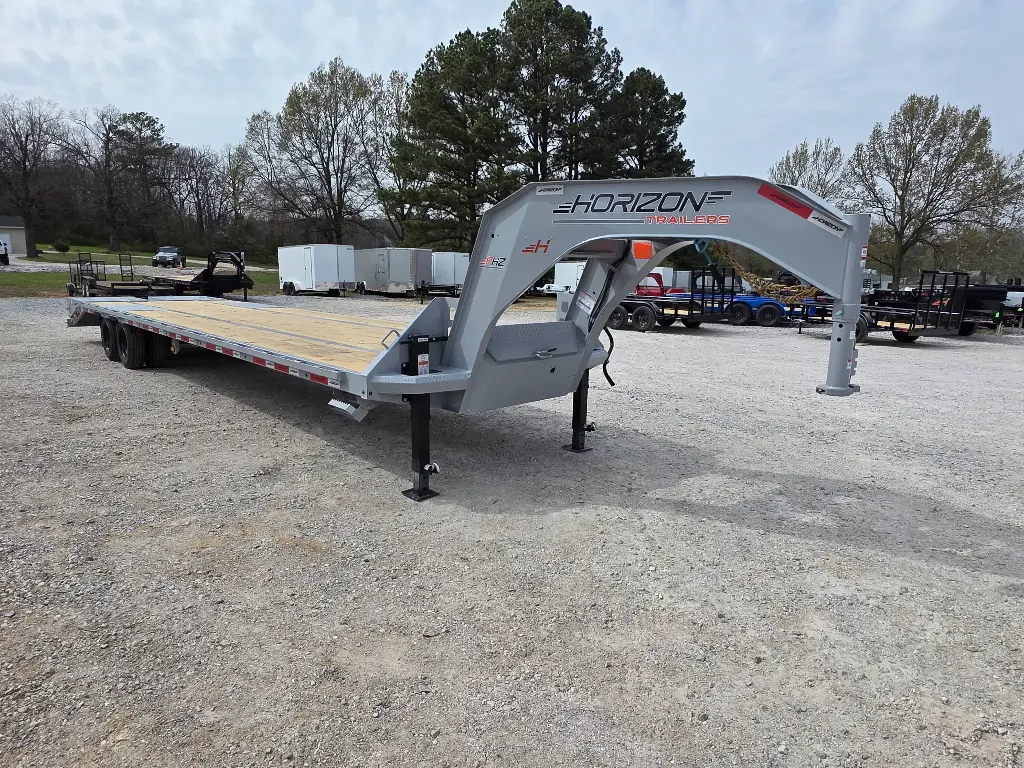

Horizon FHZ 36' Gooseneck Trailer 12K
| Stock # | 09398 |
| Year | 2025 |
| Manufacturer | Horizon Trailers |
| Model Number | FHZ 36' x 102" |
| Color | Cloud Gray |
| Floor Length | 36' |
| Width | 102" |
| Axle Capacity | 12,000 lbs |
| GVWR | 25,900 lbs |
| Unloaded Vehicle Weight | 8,630 lbs |
| Cargo Carrying Capacity | 17,360 lbs |
| Location | Springdale, AR |
Barcode:
3H7GF3625SR009398
Internal Reference:
09398
Standard Trailer Specs
GN LENGTH: 36'
DECK WIDTH: 102"
DECK HEIGHT: 33"
WEIGHT RATINGS
GAWR: 12,000 lbs
GVWR: 25,900lbs
ESTIMATE DRY WEIGHT: 8,630 lbs
ESTIMATE PAYLOAD: 17,360 lbs
ESTIMATE TONGUE WEIGHT: 1,300 lbs - 1,400 lbs
FINISH
PAINT TYPE: Powdercoat
PREP: Steel Grit Blasted
WARRANTY
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty
TONGUE
GN TYPE: Fabricated I-Beam
GN LENGTH: 96" (From Behind Riser)
GN HEIGHT: 70" (From Underneath Neck)
GN SPARE: Weld On Spare Tire Mount
COUPLER
STANDARD COUPLER GN: Adjustable 2-5/16" Gn Coupler (30,000 lbs)
JACKS
FRONT JACKS GN: Dual 10K Jack Legs (20,000 lbs)
TOOLBOX
TOOLBOX GN: Mega Toolbox Gn
SAFETY SYSTEM
BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit
SAFETY CHAINS: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
CHASSIS/FRAME
MAIN FRAME: 12" I-Beam (14 lbs/ft)
DECK/BED
DECK: Mountain Ramps
DECK WIDTH: 102"
DECK HEIGHT: 33"
FLOORING: Pine Lumber Floor
FRAME: 2" x 5" x 11ga. Tubing Bed Frame
CROSSMEMBERS: 3" Channel (3.50 lbs/ft) 16" Spacing
SIDES
STAKE POCKETS: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
RUNNING GEAR/TIRES
TYPE: Radial Tires
SIZE: ST235/80 R17.5
PLY: 14 ply
RATING: 3,520 lbs
RIMS: 17.5" Black Mod Wheels
SUSPENSION
AXLE TYPE: 2 - 12k Lippert Electric Brake EZ Lube Spring Axles
BOLT PATTERN: 8 On 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: Spring
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
ELECTRICAL AND LIGHTING/BATTERY AND CHARGING
WIRING HARNESS: All-Weather Wiring Harness (7-Way RV)
FRAME WIRING: Double Insulated Wiring Harness
LIGHTING
LIGHTS: DOT Approved Tecniq LED Lights
SAFETY
REFLECTIVE TAPE: 3M Dot Compliant Reflective Tape
