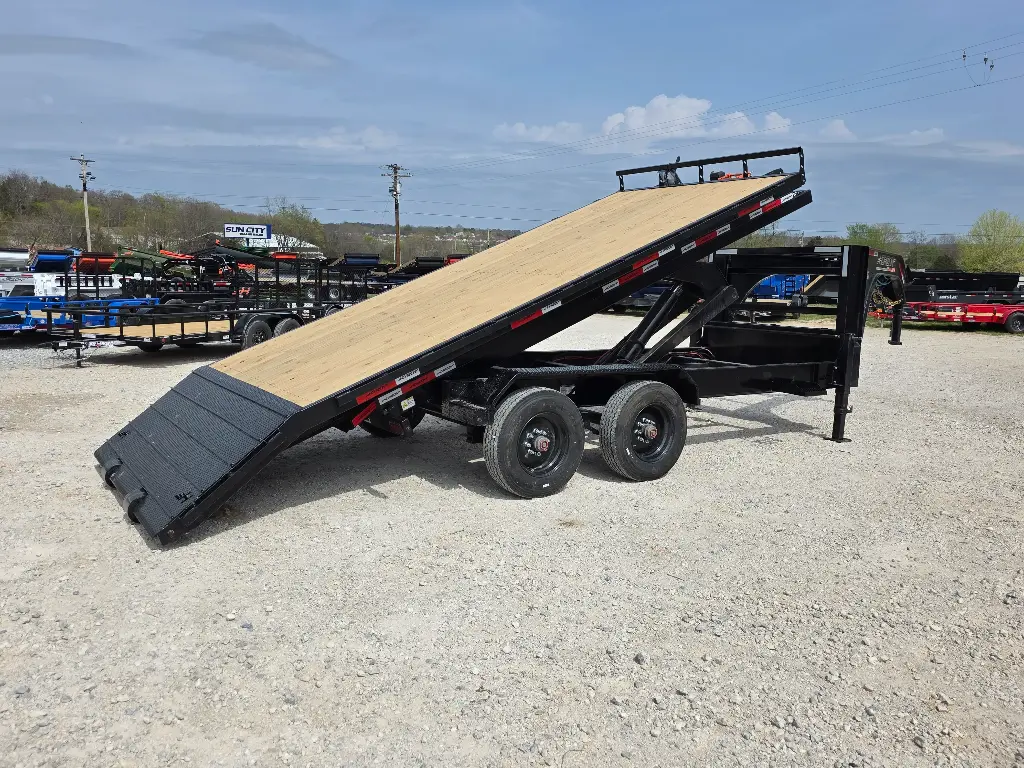

Horizon HRD 16' Gooseneck Roll Off
| Stock # | 08968 |
| Year | 2025 |
| Manufacturer | Horizon Trailers |
| Model Number | HDR 16' x 61" |
| Color | Black |
| Floor Length | 16' |
| Width | 61" |
| GVWR | 22,400 lbs |
| Axle Capacity | 10,000 lbs |
| Location | Springdale, AR |
Barcode:
3H7GR162XSR008968
Internal Reference:
08968
Price is for trailer only. Roll Off deck is an additional charge.
Standard Trailer Specs
DIMENSIONS
LENGTH: 16'
DECK WIDTH: 61"
DECK HEIGHT: 30"
WEIGHT RATINGS
GAWR: 10,000 lbs
GVWR: 20,000 lbs
ESTIMATE DRY WEIGHT: 5,270 lbs
ESTIMATE PAYLOAD: 14,730 lbs
ESTIMATE TONGUE WEIGHT: 800 lbs - 900 lbs
FINISH
PAINT TYPE: Powdercoat
PREP: Steel Grit Blasted
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty
TONGUE GN
TYPE: 10" I-Beam (17 lbs/ft)
LENGTH: 94" (From Behind Riser)
HEIGHT: 70" (From Underneath Neck)
SPARE: Weld On Spare Tire Mount
SPARE TIRE: ST235/80R16 18 Ply Tire Single (6,006 lbs)
COUPLER
STANDARD COUPLER GN: Adjustable 2-5/16" GN Coupler (30,000 lbs)
JACKS
FRONT JACKS GN: 2 Side Wind Drop Jack Legs (12,000 lbs)
TOOLBOX
TOOLBOX GN: Lockable Toolbox GN (Houses Battery and Pump)
SAFETY SYSTEM
BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit
SAFETY CHAINS: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
CHASSIS/FRAME
MAIN FRAME: 10" I-Beam (12 lbs/ft)
DECK/BED
DECK WIDTH: 61"
DECK HEIGHT: 30"
FRAME: 2" x 5" x 7ga. Tubing Bed Frame
CROSSMEMBERS: 2" x 4" x 3/8" Crossmembers
LOADING ANGLE: 55°
DUMP ANGLE: 40°
SIDES
TYPE: 3" x 4" x 1/4" Angle Iron
FENDERS: 14ga. Diamond Plate Steel Fenders
SAFETY
SAFETY CHAINS FOR ROLL OFF: (2) 1/4" 30 Grade Chain w/Clevis Hook
